Overview
This unit sits between the compact cabinet fans and the large-frame range. It moves around 300 m³/h through a wall opening or a short duct stub, which makes it useful for small workshops, storage rooms and equipment housings that need real air exchange rather than a gentle stir.
Six models cover 115 V, 230 V and 380 V at 50 and 60 Hz. Airflow runs from 299 to 336 m³/h, noise from 50 to 54 dB(A), and power from 26 to 28 W. The 60 Hz versions turn faster and move slightly more air, at a small noise penalty.
Where it fits
- Small workshops, storage rooms and plant areas
- Equipment housings with a wall or panel exhaust opening
- Short duct runs where the resistance stays low
- Cellars, utility rooms and back-of-house spaces
Specifications
| MODEL | Voltage (VAC) | Frequency (Hz) | Current (AMP) | Power (W) | Speed (RPM) | Air Flow (m3/hr) | Air Flow (CFM) | Noise Lp:dB(A) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| HA1705001HS(B)-1 | 115 | 50 | 0.43 | 26 | 2650 | 299 | 176 | 54 | 0.87 |
| HA1705001HS(B)-2 | 115 | 60 | 0.40 | 28 | 2950 | 336 | 198 | 50 | 0.87 |
| HA1705002HS(B)-1 | 230 | 50 | 0.23 | 26 | 2650 | 299 | 176 | 54 | 0.87 |
| HA1705002HS(B)-2 | 230 | 60 | 0.20 | 28 | 2950 | 336 | 198 | 50 | 0.87 |
| HA1705003HS(B)-1 | 380 | 50 | 0.13 | 26 | 2650 | 299 | 176 | 54 | 0.87 |
| HA1705003HS(B)-2 | 380 | 60 | 0.11 | 28 | 2950 | 336 | 198 | 50 | 0.87 |
Selection and installation notes
The 60 Hz version moves about 12% more air than the 50 Hz version but is louder. If the room is occupied, fit a guard and consider a shutter so the opening closes when the fan stops.

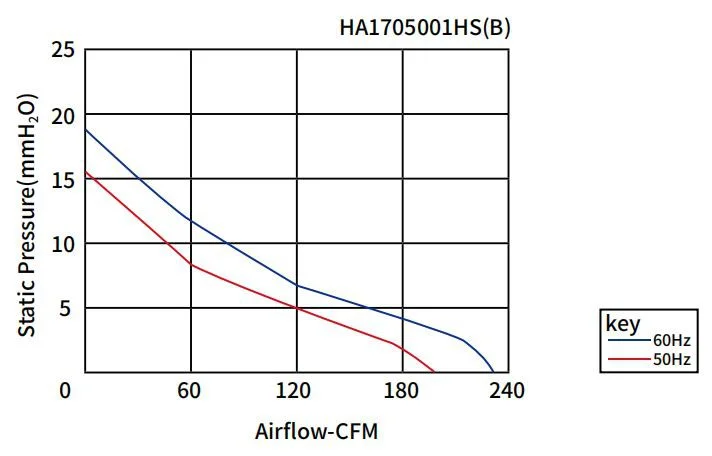

This is a low-pressure fan. A long duct, several bends or a roof cowl will reduce the delivered airflow sharply; if the run is not short and straight, a duct or centrifugal fan is the better choice.
FAQ
Can it be mounted in a wall?
Yes, with a suitable opening, guard and fixing frame. Confirm the wall thickness and the fixing method before ordering, and add a shutter if cold air returns when the fan stops.
How much air does it move?
299 m³/h at 50 Hz and 336 m³/h at 60 Hz, with noise at 54 dB(A) and 50 dB(A) respectively.
Can it be used with a duct?
Only on short, straight runs. Long ducts and bends add pressure that this axial fan cannot hold; a duct or centrifugal fan is the better fit there.
Is a 380 V version available?
Yes. The 380 V models draw 0.13 A at 50 Hz and 0.11 A at 60 Hz, with the same airflow figures as the 115 V and 230 V versions.
