Overview
An exhaust fan for rooms where a flammable atmosphere may be present. The air-moving parts are conventional; the difference is the motor enclosure, the cable entries and the marking that ties the unit to a certificate.

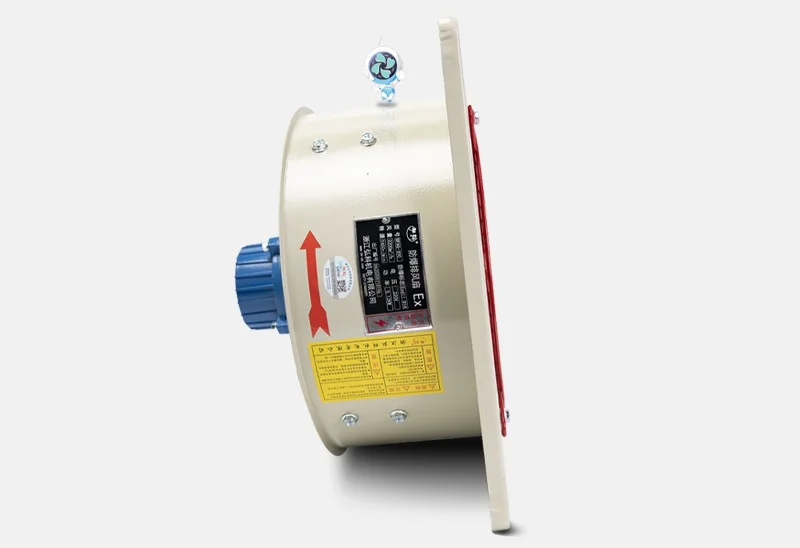

This version is fixed and wall-mounted, for continuous or switched ventilation of a hazardous room. Coverage depends on the model and the zone, so the classification has to come before the model number.
Where it fits
- Chemical and process rooms
- Paint and solvent storage areas
- Pump and compressor rooms
- Dust-handling enclosures
Specifications
| Model | Diameter of impeller | Power (W) | Spindle speed (r/min) | Flow (m3/h) | Voltage (V) | Explosion-proof mark | Protection level |
|---|---|---|---|---|---|---|---|
| BFAG-300 | 300 | 0.12 | 1450 | 2200 | 220/380 | Exd II BT4 | IP55 |
| BFAG-400 | 400 | 0.18 | 1450 | 2400 | |||
| BFAG-500 | 500 | 0.37 | 1450 | 4900 | |||
| BFAG-600 | 600 | 0.55 | 1450 | 9500 |
Selection and installation notes
Send the zone, gas group and temperature class with the airflow requirement. Without those three, no model can be confirmed as suitable.
Installation decides compliance: glands, earthing and cable type are part of the protection concept. A certified fan wired with the wrong gland is no longer compliant.
FAQ
Which zones is it suitable for?
Coverage is model-specific and stated on the manufacturer's certificate. Send the classification and we will confirm which models are documented for it.
Do you supply ATEX-certified fans?
Some models are supplied against explosion-proof certificates issued to the manufacturer. We confirm what documentation exists rather than claiming a certification we cannot evidence.
Can it be used in a duct?
This is a wall-mounted unit. For ducted pressure duty, a centrifugal explosion-proof fan is normally the better fit.
What documents come with it?
A certificate copy for the model, the marking details to compare against the nameplate, and installation instructions.
