Overview
A small blower used to pull air out of a cabinet or a compartment through a defined outlet. Because the discharge is directional, it can be connected to a short duct or aimed at a vent, which a panel-mounted axial fan cannot do.
The range covers several sizes with sleeve or ball bearings. It is intended for short extraction paths: once the duct gets long or narrow, the pressure demand moves beyond what this class can hold.
Where it fits
- Small cabinet exhaust
- Equipment compartments with a vent stub
- Local extraction inside machines
- Electronics enclosures with a filtered intake

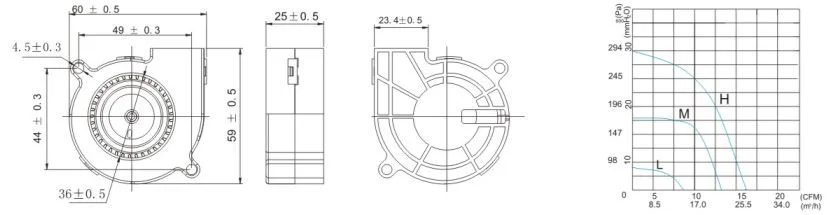

Specifications
| Model | Bearing System | Voltage (V) | Voltage Range (V) | Current (A) | Power (W) | Speed (RPM) | Moise (dBA) | Air Flow | Static Pressure | Weight (G) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m3/h | CFM | Pa | mmH2O | |||||||||
| TD602512L | Sleeve/Ball | 12VDC | 6-13.2 | 0.04 | 0.48 | 3000 | 31.1 | 8.3 | 4.9 | 73.5 | 7.5 | 48 |
| TD602512M | Sleeve/Ball | 12VDC | 6-13.2 | 0.13 | 1.56 | 4500 | 40.8 | 12.4 | 7.3 | 164.6 | 16.8 | 48 |
| TD602512H | Sleeve/Ball | 12VDC | 6-13.2 | 0.49 | 5.88 | 6000 | 47.8 | 16.5 | 9.7 | 292.0 | 29.8 | 48 |
| TD602524L | Sleeve/Ball | 24VDC | 12-26.4 | 0.02 | 0.48 | 3000 | 31.1 | 8.3 | 4.9 | 73.5 | 7.5 | 48 |
| TD602524M | Sleeve/Ball | 24VDC | 12-26.4 | 0.09 | 216 | 4500 | 40.8 | 12.4 | 7.3 | 164.6 | 16.8 | 48 |
| TD602524H | Sleeve/Ball | 24VDC | 12-26.4 | 0.18 | 432 | 6000 | 47.8 | 165 | 9.7 | 292.0 | 29.8 | 48 |
Selection and installation notes
Match the intake area to the blower. A restricted intake starves the wheel and raises noise without improving extraction.
If the air carries dust or oil mist, plan cleaning access. A loaded wheel loses balance quickly at small diameters.
FAQ
Can it replace a panel fan?
Only where a directional outlet helps. For simple through-panel airflow, an axial fan is usually simpler and quieter.
How long can the duct be?
Short. This class holds limited pressure; long or narrow runs need a larger centrifugal unit.
Is it available in 12 V and 24 V?
Yes, depending on the model. Check the table for the voltage and current of each variant.
Does it include a guard?
The blower is supplied as a unit; guards and inlet screens are selected separately.
