Overview

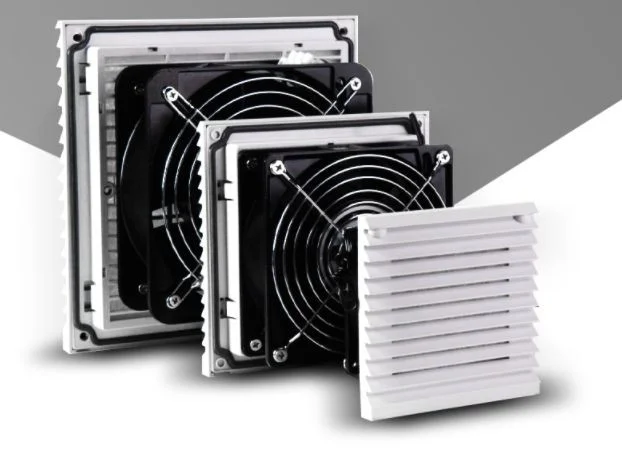

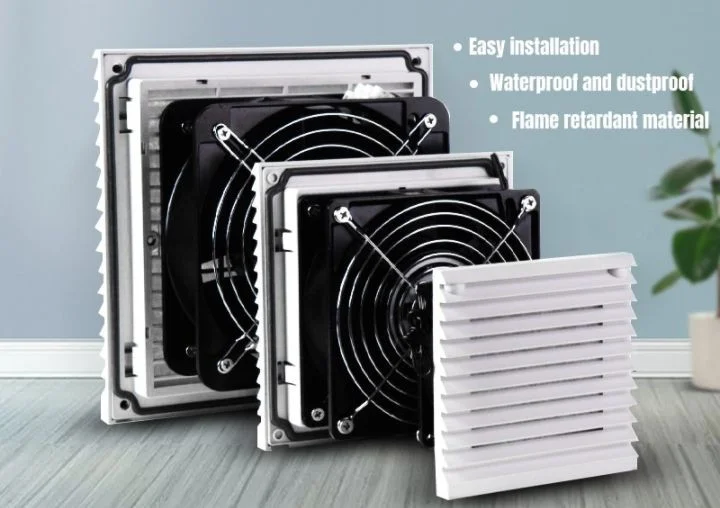

A combined filter and shutter for panel and cabinet fans. The filter keeps dust out of the enclosure; the shutter closes the opening when the fan stops, so cold air, insects and noise do not travel back through the duct.
The frame is flame-retardant ABS with a nylon filter medium. Sizes cover common fan openings, and the media is replaceable, which matters because a loaded filter is the usual reason a cabinet overheats.
Where it fits
- Control and distribution cabinets
- Filtered intake for panel cooling
- Workshops with airborne dust
- Cabinets that need a closed opening at rest
Specifications
| Product name: | Dust Filter Shutter |
|---|---|
| Product model: | 801 802 803 804 805 806 807 |
| Material of ventilation net body： | Flame resistant ABS resin |
| Filter screen material： | Nylon fiber synthetic resin |
| Scope of use： | in the house-10°C-+55°C |
| Dust removal rate: | 89% |
| Degree of protection: | IP40 |
| Product weight: | 801:112g 802:141g 803:420g 804:1203g |
Selection and installation notes
A filter reduces delivered airflow. Size the fan on the filtered figure, and plan a replacement interval based on the dust load.
A shutter adds a small resistance and a clicking noise when it moves. In quiet rooms, check whether that is acceptable.
FAQ
Does the filter reduce airflow?
Yes. The denser the media, the more resistance. Size the fan on the airflow you need with the filter fitted.
How often should the filter be replaced?
It follows the dust load. Inspect monthly in dirty plants and replace when the media is visibly loaded.
Will the shutter stop cold draughts?
It closes the opening when the fan stops, which reduces backdraught. It is not a seal for weatherproofing.
Is the frame flame retardant?
Yes, the standard frame is flame-retardant ABS. Confirm the rating if the project requires a specific standard.
